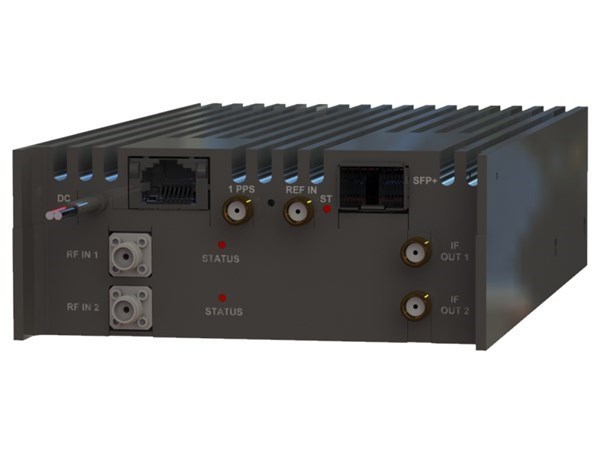

RX-26GLX-D

0.03-26 GHz Dual Channel Wideband Digital Receiver

4.08" x 6.91" x 1.66"
  • 0.03-26 GHz RF Tuning Range
  • Dual Channel
  • Phase Coherent or Independent Modes
  • IF Out at 140/150 MHz
  • Low Power: 24 W
  • Fast 300 µs Tune Time
  • 30° rms Phase Jitter, typ (1-18 GHz)
  • 45° rms Phase Jitter, typ (18-26 GHz)
  • Low 14 dB Noise Figure
  • 60 dB Gain
  • Automatic & Manual Gain Control
  • High -3 dBm IIP3 (at 20 dB gain)
  • 80 MHz Digitized Display Bandwidth
