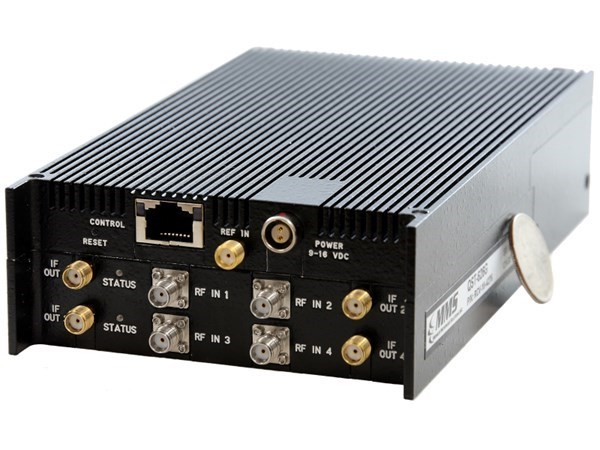

QST-626G

6-26.5 GHz Wideband Four Channel Tuner with Spectral Display

4.0" x 7.0" x 1.7"
  • 6-26 GHz RF Tuning Range
  • Four (4) Complete RF tuners – 2 coherent pairs
  • IF Outputs at 140/150/1350 MHz
  • IF BW’s from 20 MHz to 500 MHz
  • Low Power: 20 W
  • Fixed and tracking preselectors
  • Low 14 dB noise figure with 60 dB gain
  • 80 MHz Digitized Display Bandwidth
