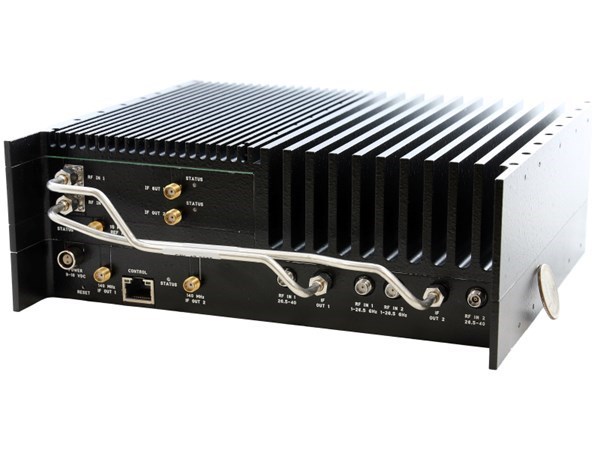

PST-140G-D

“Performance Series” 1-40 GHz Wideband Dual Channel Tuner

8.5" x 7.5" x 3.0"
  • Two complete phase coherent RF tuners
  • 1 GHz – 40 GHz tuning range
  • Low Power: <48 W
  • Multiple IF outputs / BWs
    • 1 GHz analog IF with 500/250/125 MHz BWs
    • 140 MHz analog IF with 80/60/50/40/30/20 MHz BWs
    • 140 MHz digitized IF with 16 MHz BW
  • Fixed and tracking preselectors
  • Fast 500 usec tune time
  • Low 16 dB noise figure with 60 dB gain
