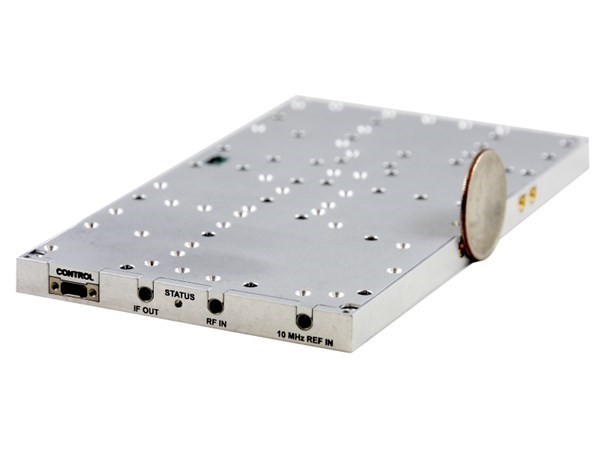

MT-6600

0.03-6 GHz Ultra-Miniature Wideband Tuner

3.25" x 5.75" x 0.35"
  • 30-6000 MHz tuning range
  • Low Power < 4 W
  • Tracking preselector
  • Fast 300 usec tune time
  • 150 MHz IF Output with up to 80 MHz BW
  • -100 dBc/Hz phase noise, 100 kHz offset
  • Low 13 dB noise figure
  • High +3 dBm IP3
  • Power Saving Mode
  • Miniature 7 cubic inch, 6 oz. package
  • RS-232 controlled
