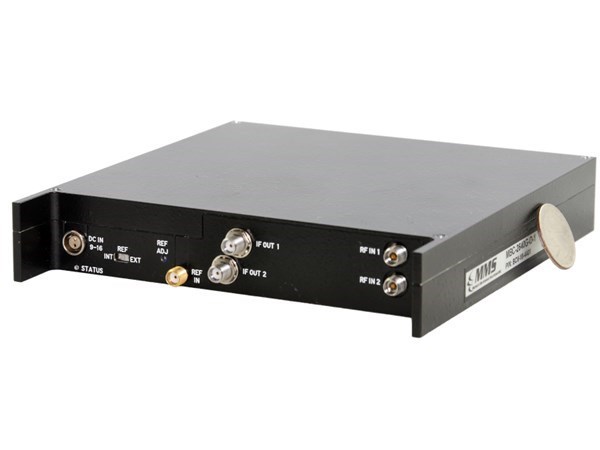

MBC-2640G-D

26.5 to 40 GHz Dual Channel Miniature Microwave Down-converter

6.0" x 6.3" x 1.1"
  • 5 - 40 GHz RF Input Frequency Range
  • Two Independent Channels
  • Dual Dedicated Microwave Down-converters
  • 2 - 16.7 GHz IF Output Frequency Range
  • External or Internal Phase Locked
  • Low 12 dB Noise Figure (typ.)
  • -5 dBm IIP3 (typ.)
  • Nominal 5 dB Gain to IF Output
  • Low Phase Noise (<1.0° typ. jitter)
  • Plug-and-play (no control required)
  • Miniature Package
  • Low Power Dissipation <18 W typ.
