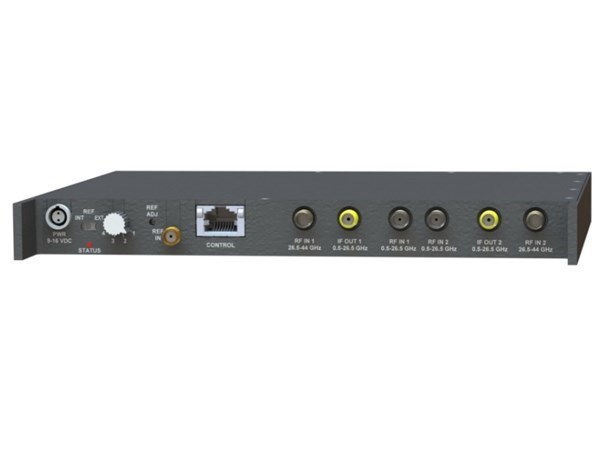

MBC-144G-D

26 to 44 GHz Dual Channel Microwave Down-converter with 1-26.5 GHz Bypass

0.8" x 6.3" x 7.85"
  • 1-44 GHz RF Input Frequency Range
  • Dual Antenna Inputs (1-26 GHz and 26-44 GHz)
  • Dual Channel
  • 1-26.5 GHz Pass Through Function
  • 26-44 GHz Block Down-conversion
  • 4-22 GHz Down-converted IF Range
  • External or Internal Phase Locked
  • Nominal 6 dB Gain to IF Output
  • Low Phase Noise (<0.35° typ jitter)
  • Manual Band Select or Network Controlled
  • Low Power Dissipation < 25 W typ.
